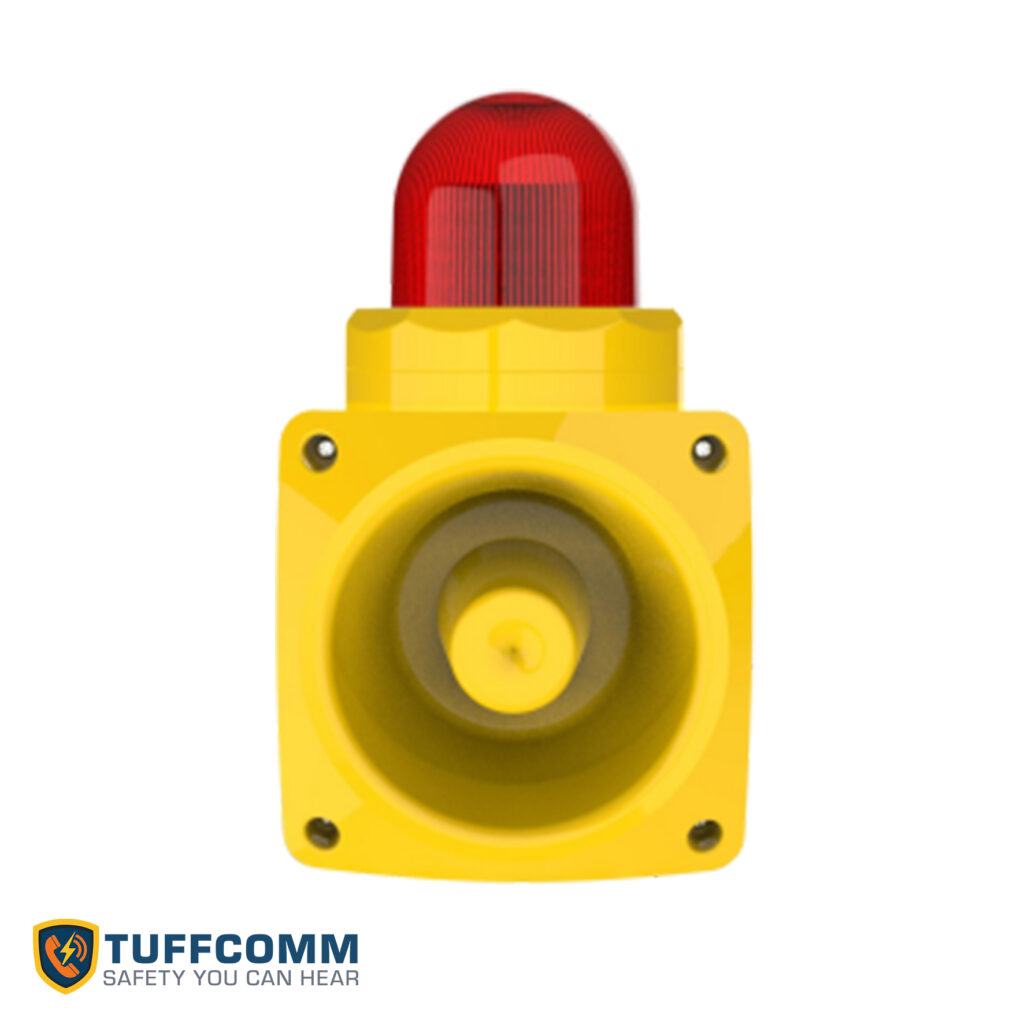

JREX-WL-02
Explosion Proof Audible & Visual Alarm
Sound and light warning, rated for hazardous areas.
Rated Ex d ib IIC T6 Gb, the JREX-WL-02 pairs with explosion-proof telephones, gas detection systems, and safety alarm networks as a certified visual warning device — or runs standalone as a hazard light or aviation obstruction light. Built for petroleum, petrochemical, nuclear, natural gas, refinery, port, and offshore platform environments. Combines a rotating beacon with a 100dB integrated alarm sound (4 selectable tones) for sites where a visual warning alone isn’t enough.
ATEX / IECEx Certified
IP66
Ex d ib IIC T6 Gb
Key Features
- LED long-on, flashing, rotating, and xenon flash modes with light-sensor auto-switching
- Aluminum alloy or SUS304 stainless steel housing, impact-resistant
- Integrated sound-and-light design — 100dB alarm with 4 selectable alarm tones
- ABS lamp cover, corrosion- and high-temperature resistant
- Easy on-site install, maintenance, and lamp head replacement
Technical Specifications
| Spec | Detail |
| Operating Voltage | DC 12V |
| Power Consumption | 10W |
| Rotation Speed | 120–140 RPM |
| LED Service Life | ≥ 60,000 hours |
| Alarm Sound | 100dB, 4 selectable tones (A/B/C/D) |
| Warning Mode | Audible and visual, rotating beacon |
| Housing Material | Aluminum alloy or SUS304 stainless steel |
| Protection Rating | IP66 |
| Operating Temperature | -30°C to 70°C |
| Dimensions | 149 × 149 × 244.35mm |
Certifications
ATEX
IECEx
IP66
Built For
Oil & Gas
Petrochemical
Marine & Offshore
Power & Nuclear Plants
